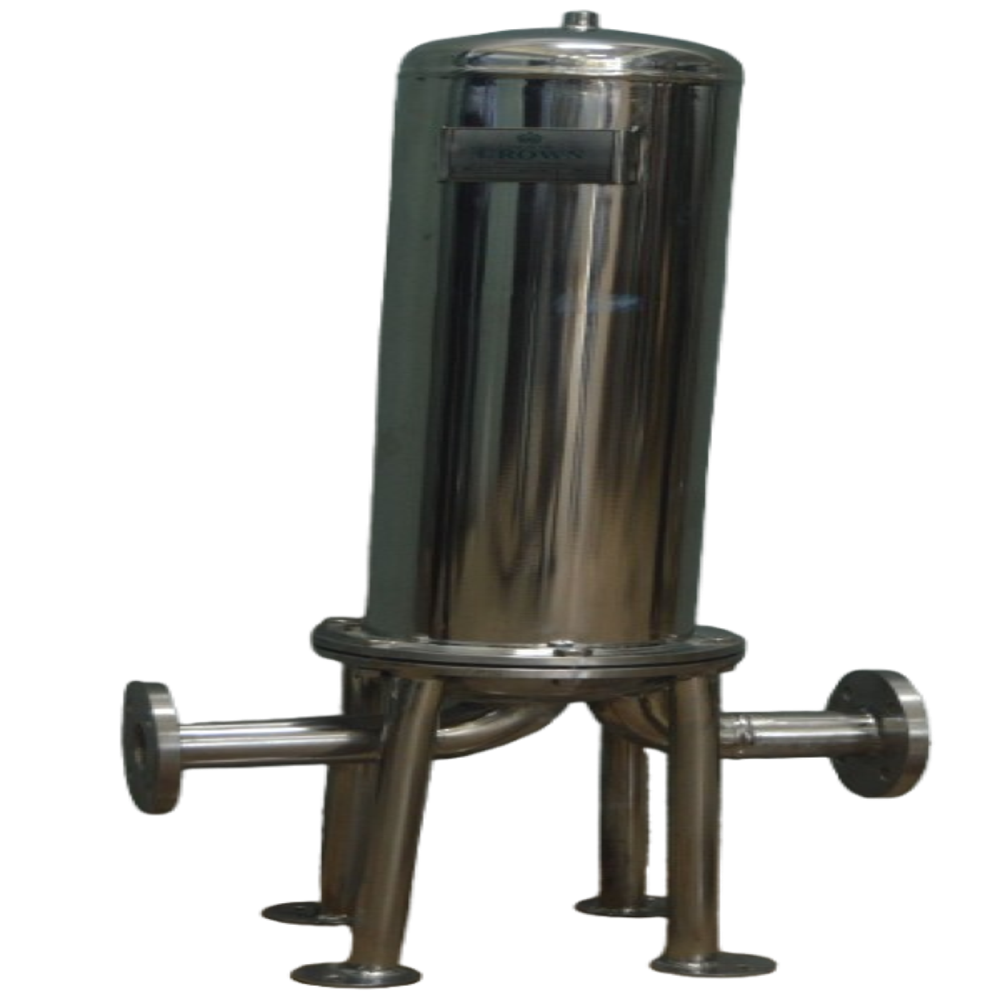

CARTRIDGE FILTER HOUSING

About CARTRIDGE FILTER HOUSING

A Cartridge Filter Housing is a pressure vessel designed to hold one or more filter cartridges for the removal of suspended solids, sediment, rust, dirt, sand, silt, scale particles, and other particulate contaminants from liquids or gases. It is one of the most widely used filtration systems in water treatment plants, pharmaceutical industries, food and beverage processing, chemical manufacturing, electronics, power plants, and numerous industrial applications.

The cartridge filter housing provides a sealed enclosure that directs the process fluid through replaceable filter cartridges, ensuring efficient filtration and protection of downstream equipment such as pumps, valves, membranes, UV systems, ozone systems, heat exchangers, and process equipment. Depending on the cartridge micron rating, cartridge filters can remove particles ranging from 100 microns down to 0.1 micron, producing high-quality filtered water suitable for various industrial processes.

Cartridge filter housings are available in multiple configurations, including single-cartridge and multi-cartridge designs, and are manufactured in various materials to suit different operating conditions and process requirements.

Working Principle:

A Cartridge Filter Housing operates on the principle of depth filtration or surface filtration, depending on the cartridge type.

The filtration process consists of the following steps:

Process water enters the filter housing through the inlet connection.

The liquid is evenly distributed around the filter cartridges.

Water passes through the filter media from the outside to the inside (or inside to outside in specific designs).

Suspended particles are retained within or on the surface of the filter media.

Clean filtered water exits through the outlet connection.

As contaminants accumulate, the pressure differential across the cartridge gradually increases.

Once the pressure drop reaches the recommended limit, the filter cartridge is replaced.

This process provides efficient removal of particulate contaminants while maintaining continuous process flow.

Major Components

A standard Cartridge Filter Housing consists of:

         Pressure Vessel

         Filter Cartridge(s)

         Housing Body

         Top Cover or Closure

         Inlet Connection

         Outlet Connection

         Cartridge Support Plate

         Cartridge Adapter

         Compression Spring

         O-Ring or Gasket

         Vent Valve

         Drain Valve

         Pressure Gauge Ports

         Mounting Brackets or Legs

         Closure Clamp or Swing Bolt Assembly

Optional accessories include:

         Differential Pressure Gauge

         Pressure Relief Valve

         Air Vent

         Drain Arrangement

         Sampling Valve

         Flow Meter

         Automatic Vent Valve

         Construction Materials

Cartridge Filter Housings are manufactured using materials selected for corrosion resistance and process compatibility.

Common materials include:

         Stainless Steel SS304

         Stainless Steel SS316

         Stainless Steel SS316L

         Carbon Steel (coated)

         PVC

         UPVC

         Polypropylene (PP)

         FRP (Fiber Reinforced Plastic)

For pharmaceutical and food-grade applications, SS316L with polished internal surfaces is commonly used.

Types of Cartridge Filter Housings

Single Cartridge Housing

Designed for:

         Small flow rates

         Laboratory applications

         Domestic water treatment

         Pilot plants

         Point-of-use filtration

         Multi-Cartridge Housing

Suitable for:

         Industrial water treatment

         High flow applications

         RO pretreatment

         Municipal water treatment

         Pharmaceutical production

These housings may accommodate 3, 5, 7, 12, 21, 36, or more cartridges depending on the required flow capacity.

Cartridge Types

Various cartridge designs are available depending on filtration requirements.

         Melt Blown Cartridge

Applications:

         Sediment removal

         Rust removal

         Sand filtration

         General water filtration

         Pleated Cartridge

Features:

         High surface area

         Low pressure drop

         High dirt-holding capacity

         Longer service life

         String Wound Cartridge

Suitable for:

         High suspended solids

         Industrial process water

         Chemical filtration

         Activated Carbon Cartridge

Used for:

         Chlorine removal

         Taste and odor improvement

         Organic contaminant reduction

         Membrane Cartridge

Applications include:

         Final polishing

         Sterile filtration

         Pharmaceutical water

         Beverage production

         Micron Ratings

Common filtration ratings include:

         100 micron

         50 micron

         25 micron

         10 micron

         5 micron

         1 micron

         0.5 micron

         0.2 micron

The micron rating is selected based on the required filtration efficiency and downstream process requirements.

Typical Operating Parameters

         Operating Pressure: Up to 10 bar (higher ratings available)

         Operating Temperature: Up to 80C (material dependent)

         Flow Rate: Depends on housing size and cartridge quantity

         Cartridge Lengths: 10", 20", 30", and 40"

         Number of Cartridges: 1 to over 100

         Connection Types: Threaded, Flanged, Tri-Clamp, or Sanitary

Features

         High filtration efficiency

         Compact design

         Easy cartridge replacement

         Low maintenance

         Corrosion-resistant construction

         High dirt-holding capacity

         Leak-proof sealing

         Suitable for continuous operation

         Available in sanitary and industrial designs

         Modular construction

         Wide range of micron ratings

         Compatible with various cartridge types

         Easy installation

         Reliable performance

 Advantages

Cartridge Filter Housings offer several operational benefits:

         Protect downstream equipment from particulate contamination.

         Improve product quality.

         Extend the life of RO, UF, and NF membranes.

         Reduce maintenance costs.

         Simple cartridge replacement.

         Low pressure loss with proper sizing.

         Compact footprint.

         High reliability.

         Suitable for multiple industries.

         Available for both low and high flow applications.

         Easy automation with pressure monitoring.

         Long service life.

         Low operating cost.

Applications

         Drinking Water Treatment

Used for:

         Sediment removal

         Final polishing

         Municipal water filtration

         Community water systems

         Bottled water plants

         Reverse Osmosis (RO) Systems

One of the most common applications.

Used for:

         RO feed water filtration

         Membrane protection

         Removal of fine suspended solids

         Reduction of particulate fouling

         Final pretreatment before RO

Typical cartridge ratings are 5 micron or 1 micron.

 Cartridge filters are installed:

         Before ozone injection

         After ozone treatment (where required)

         To remove residual suspended particles

         UV Disinfection Systems

Installed before UV reactors to:

         Reduce turbidity

         Improve UV transmittance

         Enhance disinfection efficiency

         Food & Beverage Industry

Applications include:

         Beverage water

         Juice processing

         Dairy processing

         Brewery filtration

         Soft drink production

         Ingredient water treatment

         Pharmaceutical Industry

Used for:

         Purified water

         Process water

         Final sterile filtration

         CIP systems

         Utility water

         Laboratory water

         Chemical Industry

Applications include:

         Chemical filtration

         Solvent filtration

         Catalyst protection

         Process water treatment

         Electronics Industry

 Used for:

         Semiconductor manufacturing

         High-purity water

         PCB manufacturing

         Rinse water systems

         Power Plants

Applications include:

         Boiler feed water

         Cooling water filtration

         Condensate polishing

         Turbine water systems

         Oil & Gas Industry

Used for:

         Produced water

         Process water

         Chemical filtration

         Fuel filtration

         Wastewater Treatment

Applications include:

         Final polishing

         Tertiary treatment

         Water reuse

         Recycling systems

         Textile Industry

Used for:

         Dye solution filtration

         Process water

         Utility water

         Factors Affecting Filter Performance

Performance depends on:

         Cartridge micron rating

         Flow rate

         Water quality

         Suspended solids concentration

         Cartridge material

         Operating pressure

         Temperature

         Pressure differential

         Particle size distribution

Proper cartridge selection is essential for achieving the desired filtration efficiency and service life.

Maintenance

Routine maintenance includes:

         Monitoring inlet and outlet pressure.

         Checking differential pressure across the housing.

         Replacing clogged cartridges.

         Inspecting O-rings and seals.

         Cleaning the housing during cartridge replacement.

         Verifying vent and drain valve operation.

         Inspecting closure mechanisms.

         Performing periodic leak tests.

Regular maintenance ensures optimum filtration performance and extends equipment life.

Selection Criteria

The following factors should be considered when selecting a Cartridge Filter Housing:

         Flow rate

         Required micron rating

         Water quality

         Operating pressure

         Operating temperature

         Cartridge quantity

         Cartridge length

         Material compatibility

         Connection type

         Installation space

         Industry standards and regulatory requirements
