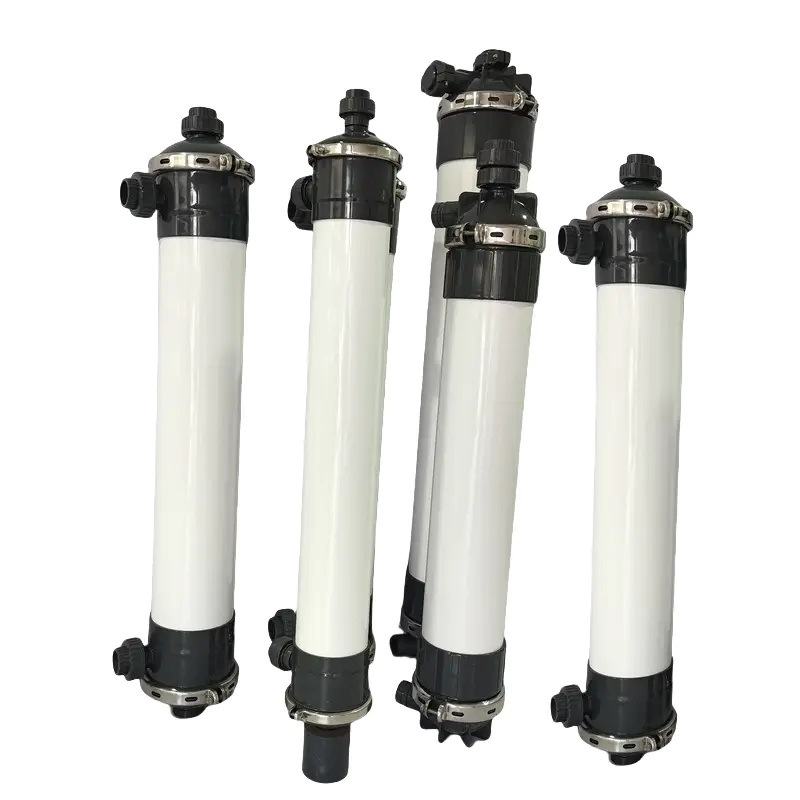

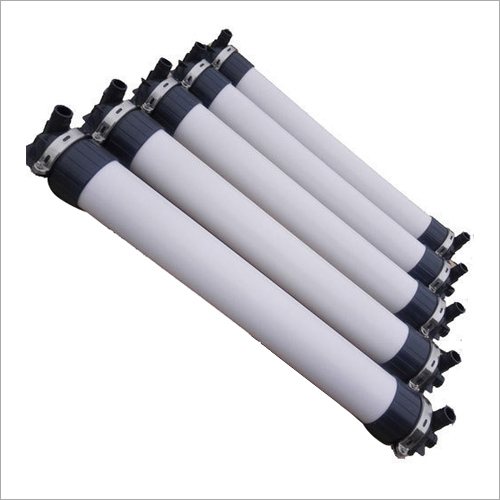

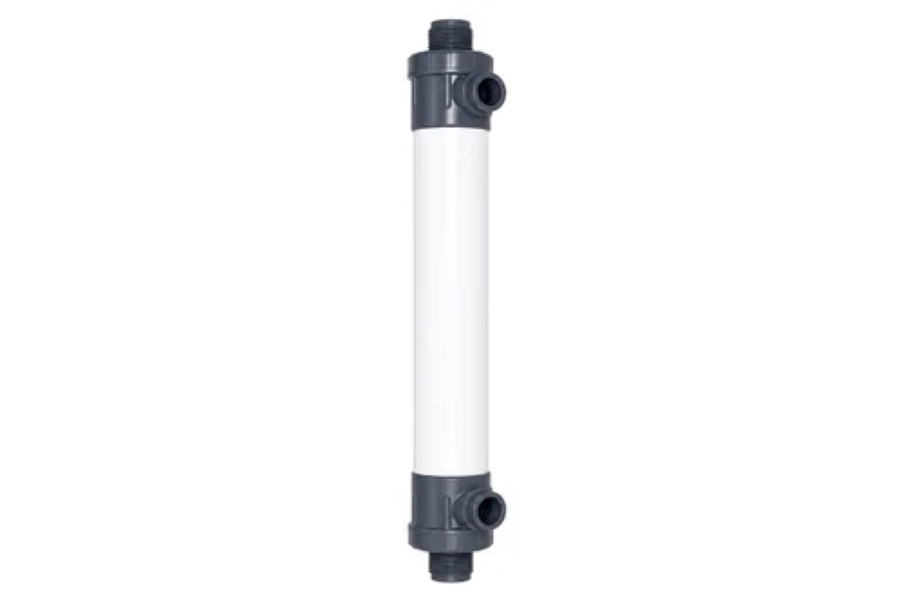

ULTRAFILTERATION MODULE

Price 130500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ULTRAFILTERATION MODULE Specification

Phase
Single-phase or three-phase

Connectivity Type
Wired / Ethernet / RS-485, depending on controller

Features
Automatic backwash, pressure monitoring, flow monitoring, alarms

Frequency
50 Hz Hertz (HZ)

Switch Type
Isolator / MCB / selector switch

Pole Type
2-pole / 4-pole, depending on electrical device Features Automatic backwash, pressure monitoring, flow monitoring, alarms Usage & Applications Drinking-water treatment, wastewater reuse, industrial process-water treatment, pretreatment for RO Rated Voltage 230/415 V AC Display Type Digital LCD/HMI Conductor Copper Material Membrane: polymeric; housing/skid: manufacturer-specific Cable Type PVC/XLPE insulated copper cable, as applicable Power Rating Pump/control-system dependent Phase 1-phase / 3-phase Features Automatic operation, PLC control, pressure/flow protection, alarms Frequency 50 Hz Rated Current Depends on connected motor/load

Output
Permeate / filtrate

Measuring Range
Pressure: typically 0 6 bar Rankine

Display
Digital display / HMI

Mounting Type
Skid / panel / wall mounting

Sensor Type
Pressure transmitter / flow sensor

Installation Type
Skid-mounted / floor-mounted

Protection Level
IP65, IP54

IP Rating
IP54/IP65

Usage & Applications
rinking-water treatment, wastewater reuse, industrial process-water treatment, pretreatment for RO

Product Type
ULTRAFILTERATION

Power Rating
Pump/control-system dependent

Working Temperature
5 40 C Celsius (oC)

Input
Raw water / Process water

Pressure Type
Feed / Transmembrane Pressure (TMP)

Application
Water and wastewater filtration

Supply Voltage
230 V AC or 415 V AC, depending on system Volt (v)

Rated Voltage
230/415 V AC Volt (V)

Cable Type
PVC/XLPE insulated copper cable, as applicable

Operating Temperature
5 40 C Celsius (oC)

Accuracy
Sensor-dependent; typically 0.5% FS mg

Display Type
Digital LCD/HMI

Conductor
Copper

Warranty
1 YEAR

Rated Current
Depends on connected motor/load Ampere (amp)

Material
PVDF

ULTRAFILTERATION MODULE Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Days

ULTRAFILTERATION MODULE About

Ultrafiltration (UF) membrane is a pressure-driven membrane filtration technology used to separate suspended solids, colloids, bacteria, viruses, and high-molecular-weight organic substances from water. UF membranes typically have pore sizes in the range of approximately 0.010.1 m and operate at relatively low transmembrane pressures.

Typical membrane materials:

PVDF (Polyvinylidene fluoride)
PES/PESU (Polyethersulfone)
PAN (Polyacrylonitrile)

Operating principle: Feed water is passed across or through the membrane under pressure. Water and dissolved low-molecular-weight substances pass through the membrane as permeate, while larger contaminants are retained as reject/concentrate.

Main applications:

Drinking-water treatment
Pretreatment for RO systems
Wastewater and industrial wastewater treatment
Removal of turbidity and colloids
Bacteria and pathogen reduction
Tertiary treatment and water reuse

Key characteristics: High removal of suspended solids and microorganisms, consistent permeate quality, compact equipment footprint, and relatively low operating pressure.
