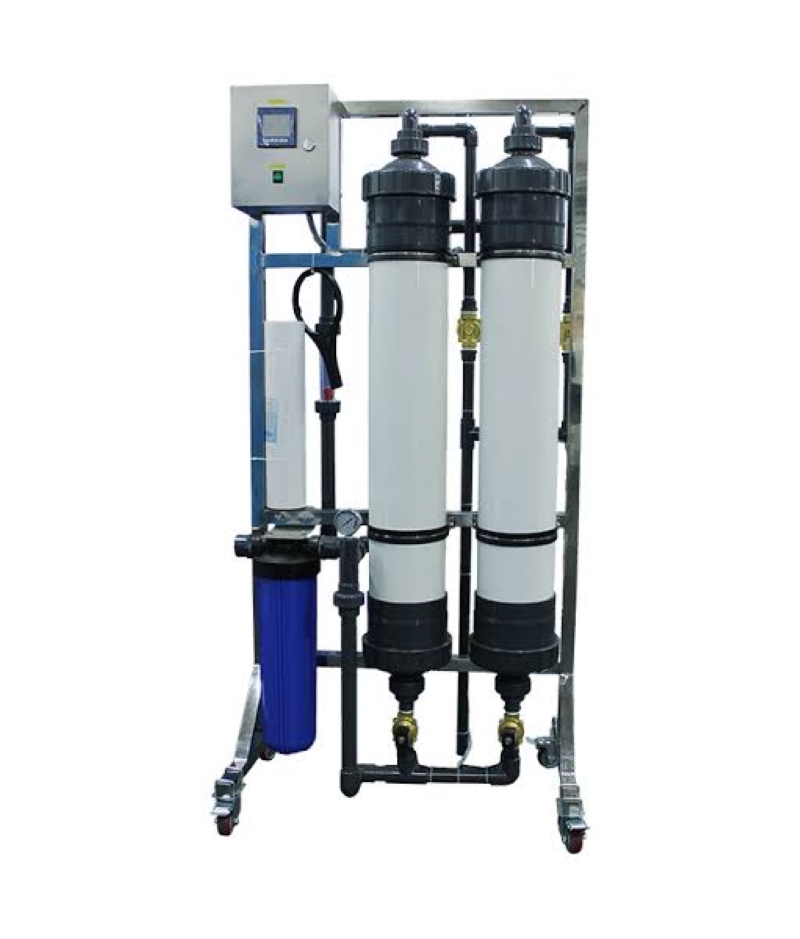

ULTRAFILTERATION SYSTEM

Working Principle

Feed water is pumped through UF membrane modules under pressure. The membrane allows water and dissolved low-molecular-weight substances to pass through as permeate, while larger particles and microorganisms are retained as reject/concentrate.

Typical process flow:

Raw Water Pre-filtration Feed Pump UF Membrane Modules Permeate Tank Treated Water

The retained contaminants are periodically removed through backwashing and/or chemically enhanced backwashing (CEB) to maintain membrane performance.

Main Components

1. Feed Tank Stores and equalizes the incoming water.
2. Feed Pump Supplies the required pressure and flow to the UF membranes.
3. Pre-filter Removes larger particles and protects the membranes.
4. UF Membrane Modules The primary filtration element, commonly hollow-fiber or tubular membranes.
5. Permeate Tank Collects the filtered water.
6. Backwash System Uses permeate water to clean the membrane periodically.
7. Chemical Cleaning System Uses suitable chemicals when physical cleaning is insufficient.
8. Control Panel/PLC Automatically controls filtration, backwash, CEB, alarms, and operating parameters.
9. Pressure and Flow Instruments Monitor feed pressure, permeate pressure, flow rate, and membrane performance.

Typical Applications

UF systems are widely used for:

• Drinking-water treatment
• Industrial process-water treatment
• Pretreatment for Reverse Osmosis (RO)
• Wastewater and tertiary treatment
• Surface-water clarification
• Removal of bacteria and viruses
• Food and beverage processing
• Pharmaceutical and biotechnology applications

Advantages

• Produces consistent-quality filtered water
• Effective removal of suspended solids and microorganisms
• Compact compared with conventional clarification systems
• Lower chemical requirement than many conventional processes
• Excellent RO pretreatment
• Automated operation is possible
• Does not generally remove dissolved salts, so UF is often combined with RO when desalination is required.
