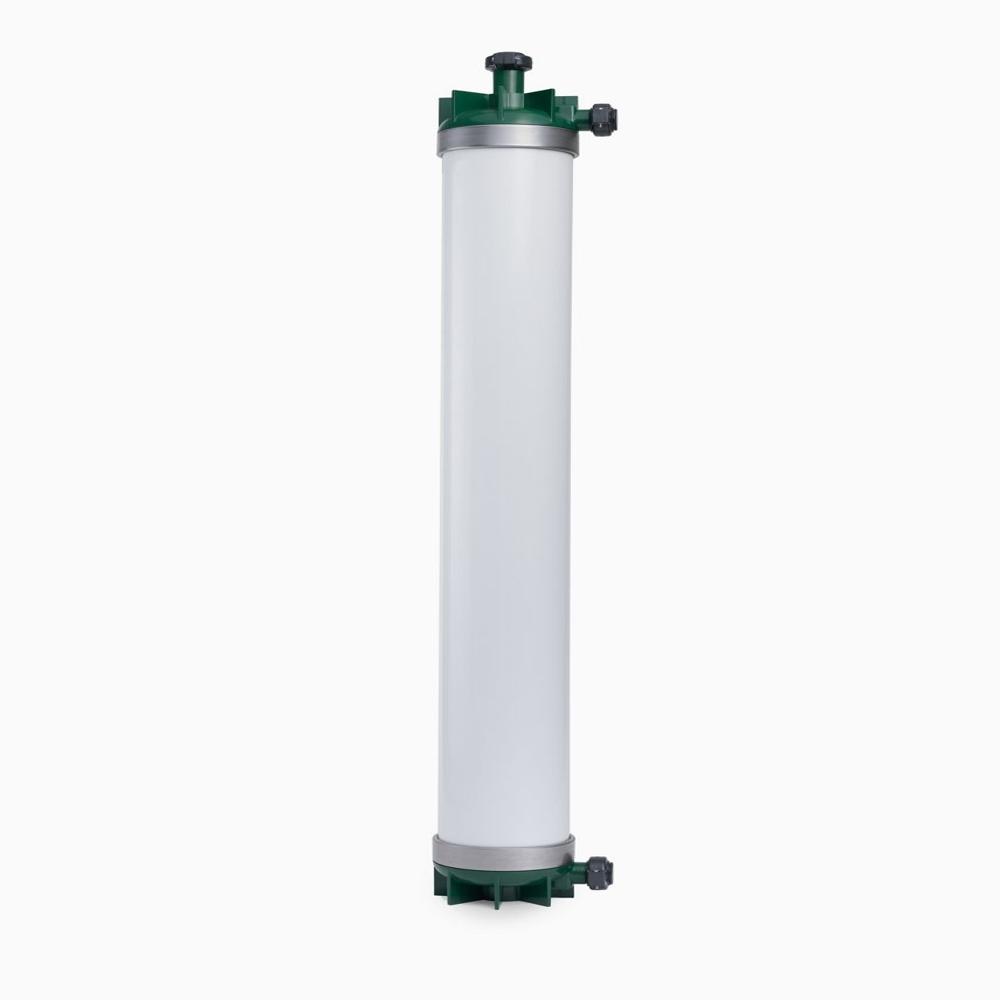

Send InquiryULTRAFILTERATION MODULE
Price 112499.0 INR/ Unit
MOQ : 1 Unit
ULTRAFILTERATION MODULE Specification
- Features
- Automatic backwash, pressure monitoring, flow monitoring, alarms
- Sensor Type
- Pressure transmitter / flow sensor
- IP Rating
- IP54/IP65
- Display
- Digital display / HMI
- Measuring Range
- Pressure: typically 0 6 bar Rankine
- Pole Type
- 2-pole / 4-pole, depending on electrical device
- Protection Level
- IP65, IP54
- Connectivity Type
- Wired / Ethernet / RS-485, depending on controller
- Installation Type
- Skid-mounted / floor-mounted
- Phase
- Single-phase or three-phase
- Output
- Permeate / filtrate
- Frequency
- 50 Hz Hertz (HZ)
- Mounting Type
- Skid / panel / wall mounting
- Switch Type
- Isolator / MCB / selector switch
- Usage & Applications
- Drinking-water treatment, wastewater reuse, industrial process-water treatment, pretreatment for RO
- Power Rating
- Pump/control-system dependent
- Product Type
- Ultrafiltration Membrane
- Working Temperature
- 5 40 C Celsius (oC)
- Input
- Raw water / Process water
- Pressure Type
- Feed / Transmembrane Pressure (TMP)
- Application
- Water and wastewater filtration
- Rated Voltage
- 230/415 V AC Volt (V)
- Supply Voltage
- 230 V AC or 415 V AC, depending on system Volt (v)
- Operating Temperature
- 5 40 C Celsius (oC)
- Cable Type
- PVC/XLPE insulated copper cable, as applicable
- Accuracy
- Sensor-dependent; typically 0.5% FS mg
- Weight
- 45 Kilograms (kg)
- Display Type
- Digital LCD/HMI
- Rated Current
- Depends on connected motor/load Ampere (amp)
- Conductor
- Copper
- Warranty
- 1 YEAR
- Material
- PVDF
ULTRAFILTERATION MODULE Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 1 Days
ULTRAFILTERATION MODULE About
Ultrafiltration (UF) membrane is a pressure-driven membrane filtration technology used to separate suspended solids, colloids, bacteria, viruses, and high-molecular-weight organic substances from water. UF membranes typically have pore sizes in the range of approximately 0.010.1 m and operate at relatively low transmembrane pressures.
Typical membrane materials:
- PVDF (Polyvinylidene fluoride)
- PES/PESU (Polyethersulfone)
- PAN (Polyacrylonitrile)
Operating principle: Feed water is passed across or through the membrane under pressure. Water and dissolved low-molecular-weight substances pass through the membrane as permeate, while larger contaminants are retained as reject/concentrate.
Main applications:
- Drinking-water treatment
- Pretreatment for RO systems
- Wastewater and industrial wastewater treatment
- Removal of turbidity and colloids
- Bacteria and pathogen reduction
- Tertiary treatment and water reuse
Key characteristics: High removal of suspended solids and microorganisms, consistent permeate quality, compact equipment footprint, and relatively low operating pressure.
